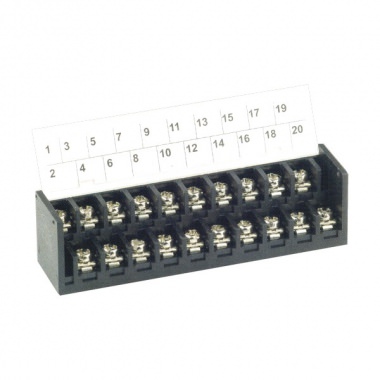

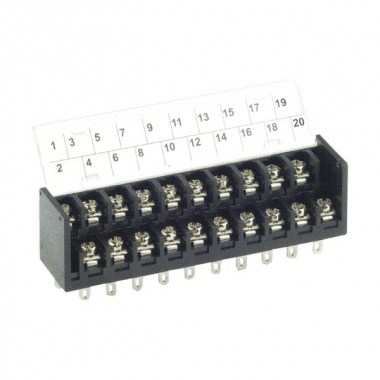

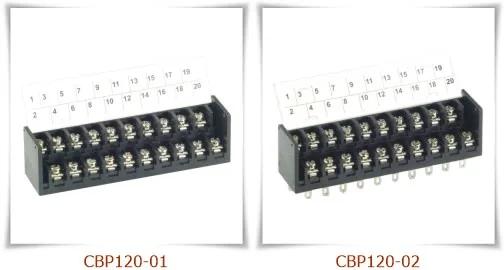

CBP120 雙層接線端子台，PCB端子台 7.62mm pitch, 15A 300VAC

1. Product Type: Barrier Strip
2. Model Number: CBP120
3. Rating: 15A 300VAC
4. Body Material: PBT, Black
5. Terminal: Brass, 0.8t, Tin Plated
6. Screw: Steel, M3, Nickel Plated
7. Working Temperature: -40˚C to +130˚C
8. Insulation withstand Voltage: AC2000V at 1 min
9. Insulation resistance: 500MΩ or more at DC 500V
10. Wire Range: 22~14 AWG
11. Max. Torque Value: 8Kg/cm
12. Poles: 2x2P~2x30P
13. Pitch: 7.62mm
14. Cover Available
15. Place of Origin: Taiwan
